Logic Analyzers overview

Ikalogic range of Logic Analyzers and logic pattern generators

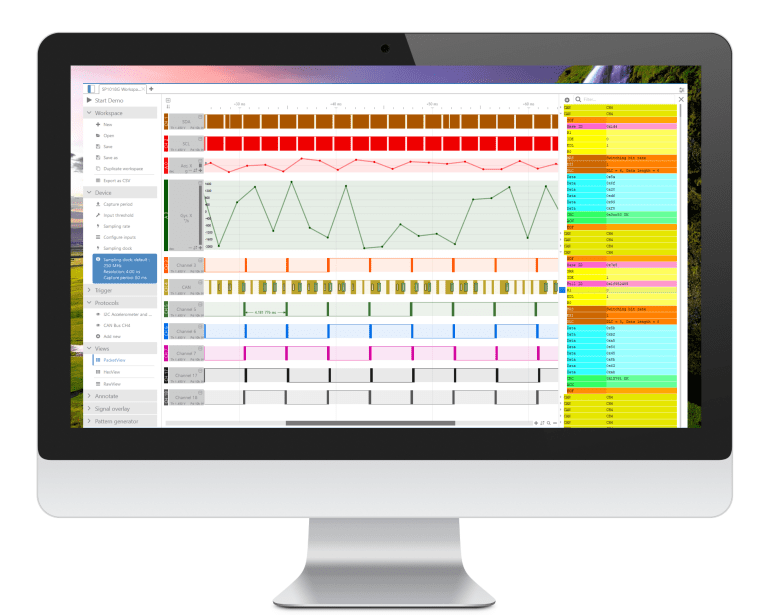

Ikalogic offer a range of logic analyzers, covering a wide range of budgets and applications. All our logic analyzers are operated using the industry leading ScanaStudio Logic Analyzer software that allows you to capture signals, decode protocols, build patterns to be generated or write custom scripts to take signal analysis even futher. Below is our current range of logic analyzer devices.

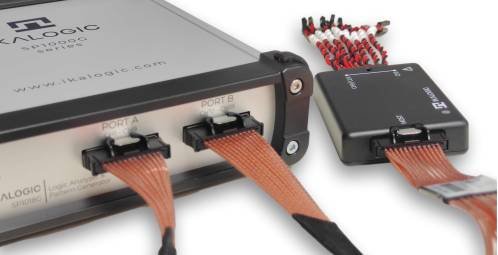

SP1000G Series

 Professional Logic Analyzer and pattern generator
  • Up to 54 input / output channels
  • 1GHz sampling rate even when using all channels
  • Decode standard buses (like I2C, SPI, UART, 1-Wire, CAN, etc)
  • Generate patterns, logic signals or any protocol up to 125MHz
  • Open-source protocol decoders and signal builders (See full list)
  • Live streaming via USB-3 interface
  • up to 12Gb DDR3 embedded memory to ensure even performances on any computer
  • Active probe sets with 250MHz bandwidth
More info about SP1000G Series
SP1000G Logic Analyzer and pattern generator

SQ Series

 Entry level Logic Analyser and pattern generator
sq200
  • 4 input/output channels
  • Up to 200MHz sampling rate
  • Capture and generate logic signals
  • Decode standard buses (like I2C, SPI, UART, 1-Wire, CAN, etc)
  • Open-source protocol decoders and signal builders
  • Up to 4 Mpts embedded sampling memory
  • Low price, as low as 89€ (Excl.Taxes)
More info

SP209 Series

 Professional Logic Analyzer
sq200
  • 9 input channels
  • 200MHz sampling rate with signal compression
  • Decode standard buses (like I2C, SPI, UART, 1-Wire, CAN, etc)
  • Open-source protocol decoders and signal builders
  • Live streaming via USB
  • 2Gb DDR3 embedded memory (to enhance USB streaming)
  • Premium quality test probes
More info

Custom-tailored solutions

Please note that we often develop and supply custom, application specific, solutions. A custom development may include (but is not limited to):

  • Custom device FPGA Firmware
  • Custom active or passive probes
  • Custom board-to-board cable adapter
  • Custom API (.DLL/.SO File and their documentation) to access the logic analyzer device

Among our clients who trust us with their custom instruments needs is ST-Microelectronics, Bosch GMBH and French CNRS institute

Please contact us to discuss your requirement and specific application.

Contact us with you questions Book a one-to-one online meeting
