ScanaQuad Logic analyzers and ScanaStudio software let you capture digital signals, analyze them in depth or generate test patterns. That will help you get your embedded system up and running, quickly!

Make that

SPI bus

CAN bus

1-Wire chip

RS232 port

Firmware

I2C sensor

UART port

work like a charm.
Right Now!

ScanaQuad Logic analyzers and ScanaStudio software let you capture digital signals, analyze them in depth or generate test patterns. That will help you get your embedded system up and running, quickly!

ScanaQuad Series, by Ikalogic.
The logic analyzer you need to nail that serial interface.

Logic analyzer helps you debug serial protocols

Capture + Generate

Logic analyzer can capture and generate

ScanaQuad Logic analyzer lets you capture, generate or do both simultaneously.

Easily debug your serial interface or stimulate your circuit with test patterns and check its response.

Protocol Trigger

Logic analyzer has advanced trigger capabilities

Complex multi-step trigger lets you target precise features of your data, like a specific I2C address or a CAN frame ID.

Trigger sequences can even be defined for proprietary protocols!

30+ Protocols

30+ protocol decoder scripts are open source and included by default. I2C, SPI, RS232, CAN, 1-WIRE, JTAG, you name it!

Browse and use existing decoders or create your own script.

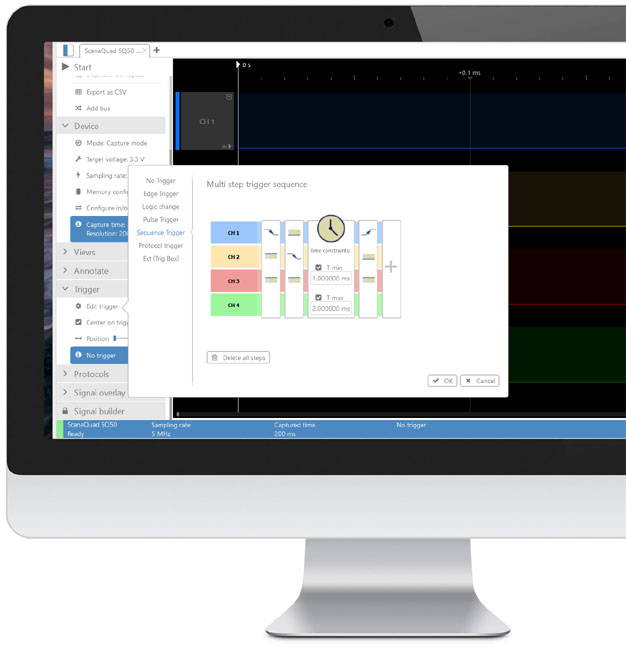

Powerful and flexible

Trigger!

ScanaQuad comes with state of the art hardware-side trigger engine that lets you define virtually any trigger sequence you can imagine. It can be a simple rising edge, or a combination of logic levels, edges, pulse widths, timing constraints that need to be met, and more.

The Drag-n-Drop interface is super easy to use. Want to give it a try? Download free ScanaStudio software and test-drive now!

Ready to pick your SQ Logic Analyzer?

Select your flavor and we'll ship it from France to your doorstep.

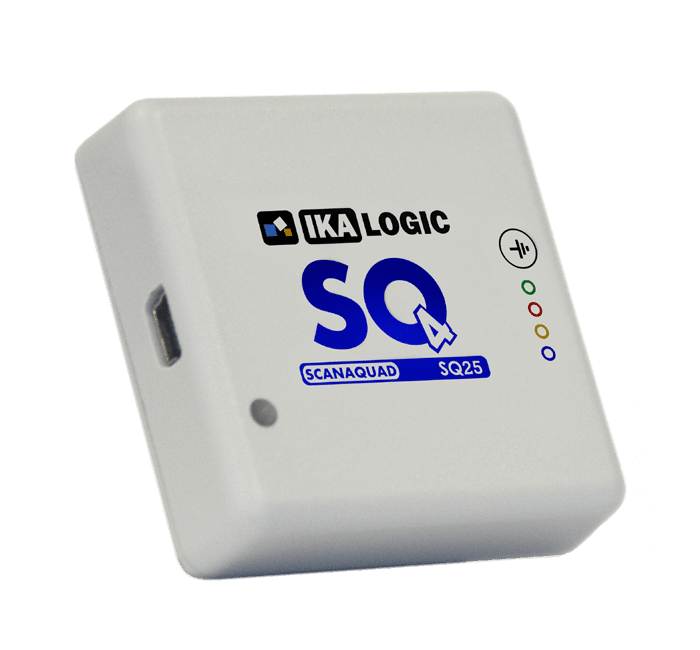

SQ25 Logic Analyzer

SQ25
69€ (Ext. Taxes)
82.8€ (Incl. Taxes)
25 MHz Sampling rate
256K Pts per channel
Perfect for beginners

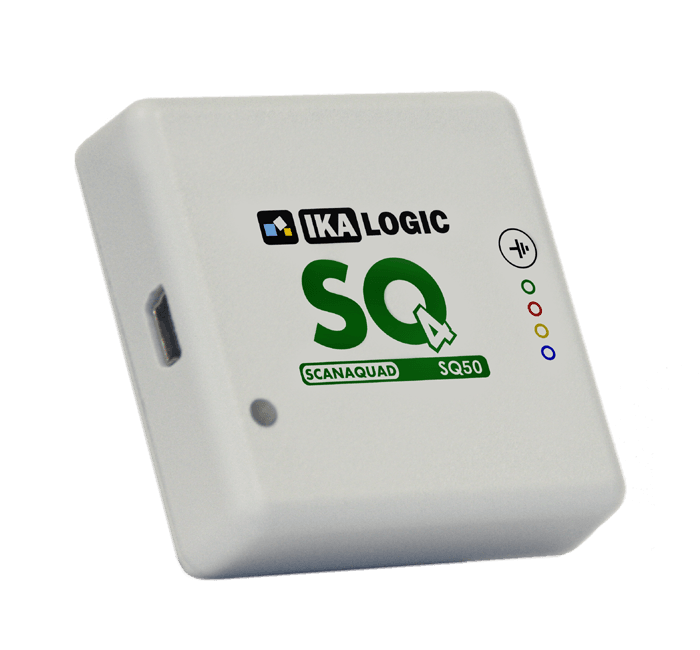

SQ50 Logic Analyzer

SQ50
89€ (Ext. Taxes)
106.8€ (Incl. Taxes)
50 MHz Sampling rate
1M Pts per channel
For serious Hobbyists

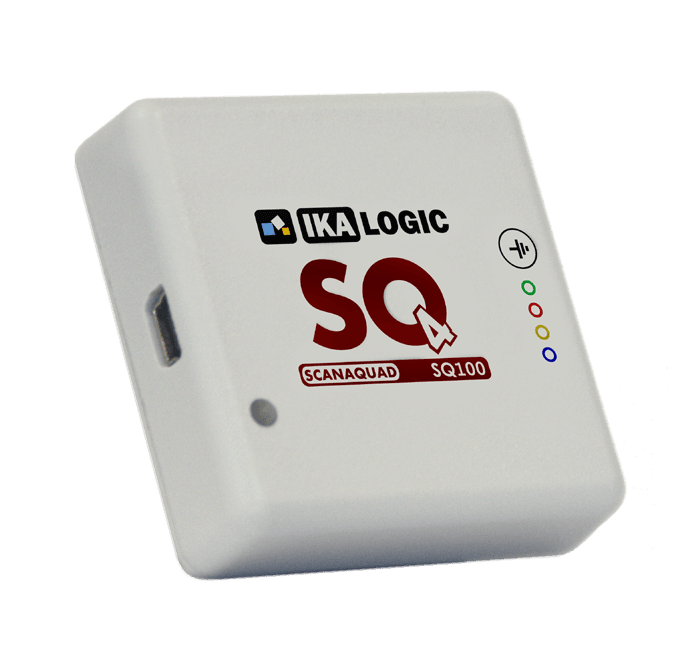

SQ100 Logic Analyzer

SQ100
119€ (Ext. Taxes)
142.8€ (Incl. Taxes)
100 MHz Sampling rate
2M Pts per channel
For advanced users

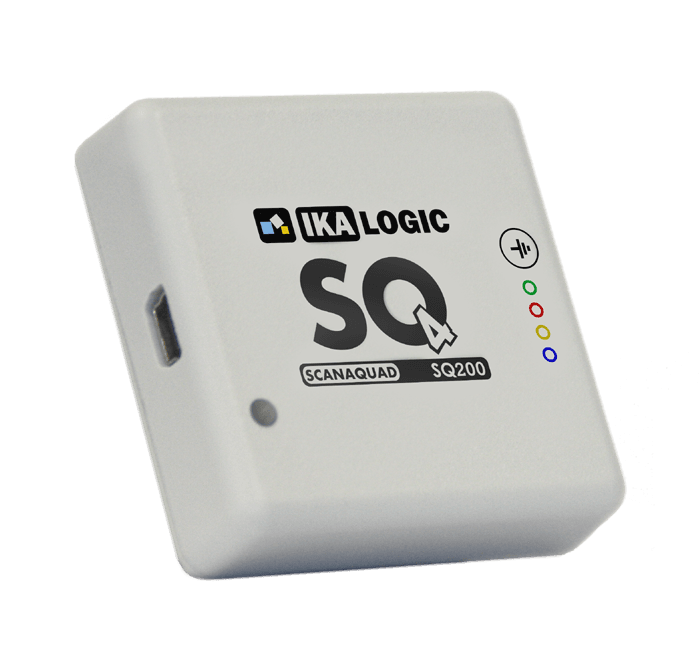

SQ200 Logic Analyzer

SQ200
149€ (Ext. Taxes)
178.8€ (Incl. Taxes)
200 MHz Sampling rate
4M Pts per channel
For experts users

Included accessories: Hook probes and USB cable.
Taxes that may be deduced during checkout depending on your delivery address and business type

ScanaQuad series specifications

SQ25

SQ50

SQ100

SQ200

Number of Input/output channels

4

4

4

4

Max. Sampling rate

25 MHz

50 MHz

100 MHz

200 MHz

Memory per channel

256 K

1M

2M

4M

Digital pattern generator

Mixed mode (Capture + Generate)

Input protection

± 12V

± 12V

± 35V

± 35V

Trigger options

Edge, Level, Pulse

Edge, Level, Pulse, arbitrary pattern , serial protocol

Edge, Level, Pulse, arbitrary pattern , serial protocol

Edge, Level, Pulse, arbitrary pattern , serial protocol

Adjustable in/out voltage

SQ50 logic analyzer has adjustable in/out voltage
SQ100 logic analyzer has adjustable in/out voltage
SQ200 logic analyzer has adjustable in/out voltage

Adjustable input resistance

SQ100 logic analyzer offer adjustable input resistance
SQ200 logic analyzer offer adjustable input resistance

Open drain output with optional pull up

SQ100 logic analyzer with open drain output option
SQ200 logic analyzer with open drain output option

Differential input pairs

0

0

1

2

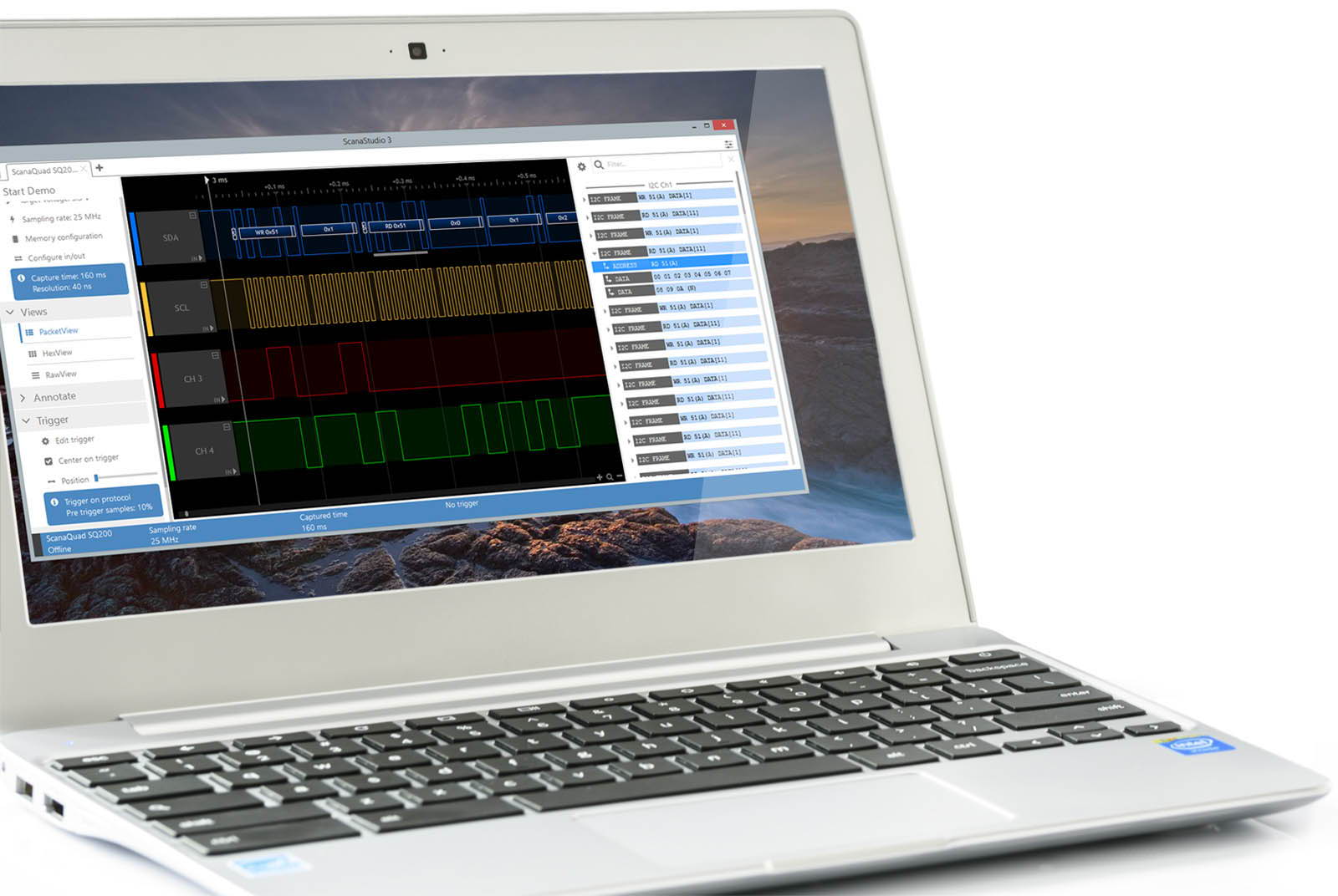

ScanaStudio Logic Analyzer software

The all new ScanaStudio V3 lets you unleash the full power of your ScanaQuad logic analyzer!

logic analyzer software runs on laptop
powerful logic analyzer software

Power packed

ScanaStudio comes with powerful analysis features like packet view, search and filtering of captured data, unlimited annotations, markers and measurements, data exportation options and more.

Logic analyzer ready for the future

Future proof

ScanaStudio is designed with evolution in mind. New features are constantly added without cluttering the interface or disturbing its intuitive work flow.

logic analyzer ready for your os

Ready for your OS

ScanaStudio natively runs on windows, mac and linux. Download the latest version for your favorite OS.

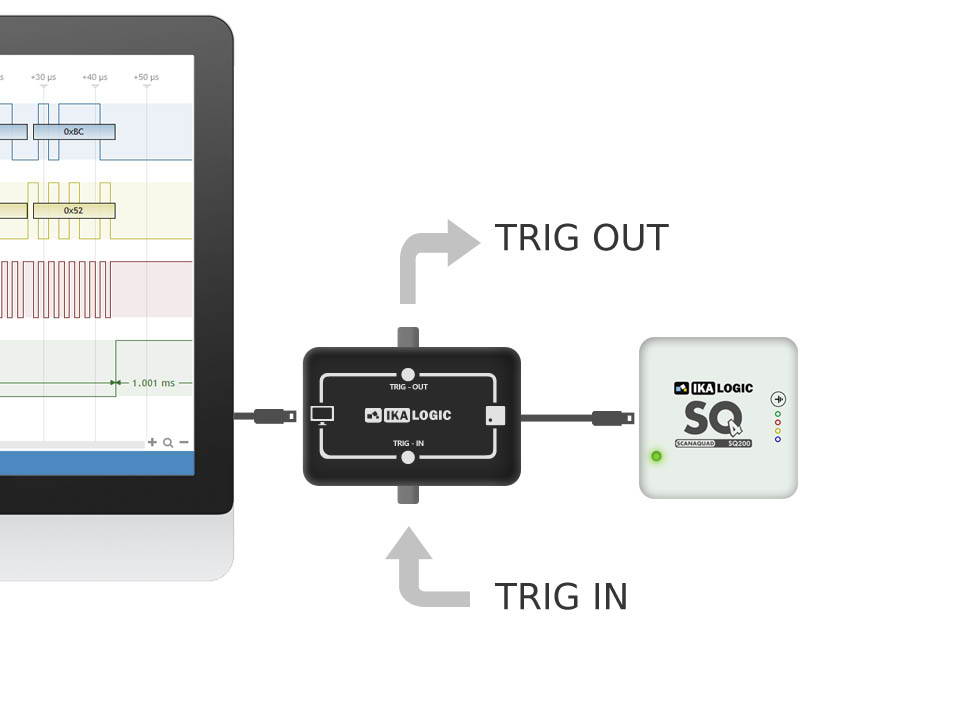

Logic analyzer has trigger in and trigger out capability with trigbox

Sync ScanaQuad to your favorite instrument with

TrigBox

With TrigBox accessory you can easily connect and synchronize your ScanaQuad logic analyzer to your favorite instrument that has an external trigger input or output: Oscilloscopes, Desktop Multimeters, Waveform generators... you name it!

TrigBox connects in series between your computer and your ScanaQuad, and exposes two SMA female connectors for trigger in and out. An SMA to BNC connector is also provided for your convenience.
